Shown is a side view of Bea, Francois/Frank has the same side view.

Frank is long enough to get all your fingers on.

Not in the picture is the "depth" which is 26 mm, same as the height. (F's depth is 90+mm)

The pinches are hardwood scraps from the making of rubber stamps with wooden backs.

Drill a hole dead through the center. on the X. Feed some cord through the middle, clip it to a weight, begin training, own the records.

All grips have the same shape except Gino, Hans, and Al. The chart below shows the dimensions you need to make the whole set.

block scoop width top width height depth
AL 47.5 mm 51 mm 19 mm 64 mm
Bea 19 mm 28 mm 26 mm 26 mm
Chris 31 mm 40 mm 26 mm 65 mm
Dino 57 mm 76 mm 26 mm 100 mm
Eileen 49 mm 58 mm 26 mm 80 mm
Frank 19 mm 28 mm 26 mm 90 mm
Gino 26 mm 26 mm 63 mm 26 mm(It's a block)
Hans 38 mm 38 mm 150 mm 88 mm(It's a 2X4!)

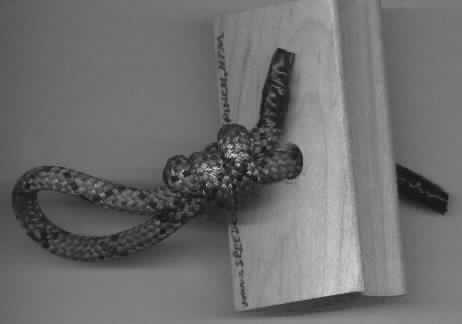

Chris shown above with cord.

OK , so the numbers didn't come out well,

That's AL to the left, duh...

(Gino Not shown). still have questions? ask me via email: .
